Understanding the SAVE Standard

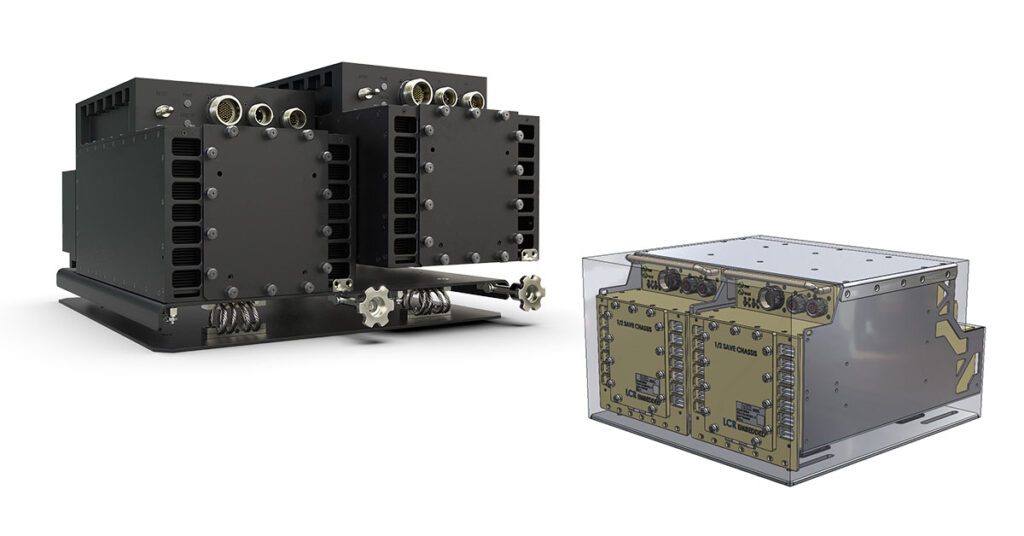

LCR SAVE-820

SAVE compliant chassis conform to size, weight, power, environmental requirements, connector requirements and electrical interfaces for C5ISR systems in Army ground vehicles. Chassis dimensions: 9.3” (H), 15.9 (W) x 16.1″ (D)

SAVE – Standardized A-Kit / Vehicle Envelope – is a standard that defines the size, weight, power, environmental requirements, connector requirements and electrical interfaces for C5ISR systems installed in ground combat vehicles. The purpose of establishing these attributes for ground vehicle systems is to ensure long-term stability for functional upgrades. Providing a standardized integration space for system developers allows for easier and more efficient incorporation of new features. Chassis that adhere to the SAVE standard meet the specifications outlined within the standard.

SAVE – The Big Picture

The SAVE standard is part of a larger initiative to facilitate rapid integration of radios, computers, and networks across a range of applications in Army ground vehicles. By embracing this approach, the United States Army benefits from accelerated and cost-effective technology update cycles for both the vehicle and system aspects. Shortening time to deployment for advanced capabilities enables a significant advantage over adversaries in combat scenarios.

MOSA for VPX and SOSA aligned Payloads

SAVE is applicable to any modular open system approach (MOSA) that incorporates electrical and/or digital integration. 3U VPX and SOSA, both MOSA standards, are rapidly becoming the predominant architecture for defense applications as a result of Department of Defense directives to adopt a modular design strategy. Proven field performance of 3U VPX systems ensures its place in SAVE compliant systems.
