8 Slot SAVE VPX Chassis

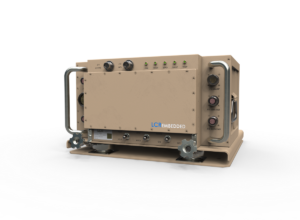

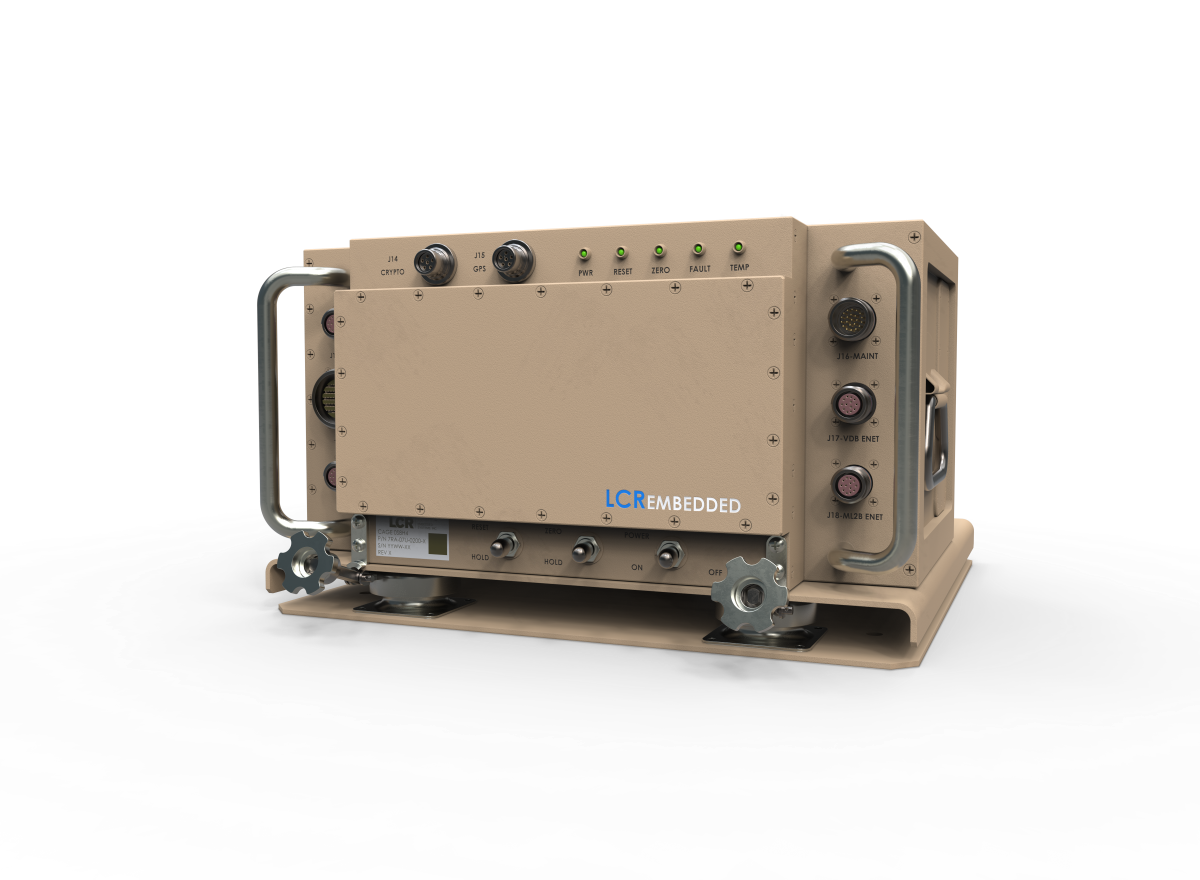

The SAVE-820 chassis is intended for integrated Command, Control, Computers, Communications, Cyber, Intelligence, Surveillance, and Reconnaissance (C5ISR) systems into Army ground vehicles. Standardized A-Kit/Vehicle Envelope (SAVE) chassis, conform to size, weight, power, connector requirements and electrical interfaces for C5ISR systems under the SAVE standard.
The SAVE-820 chassis supports 3U VPX SOSA / CMOSS payloads in target systems requiring conformance to the standard. It includes the complete connector complement under the standard. The 8 payload and 2 power supply backplane enables use of commonly applied SOSA aligned modules and their associated profiles.
Start your SAVE system development activities with our DK3-SAVE Development Chassis.
Learn more about the SAVE standard for Army ground vehicles.
Download PDF DatasheetDownload Backplane Brochure
- 8 payload and 2 power supply backplane
- Accommodates payload combinations in SAVE deployment chassis
- Operating: -40°C to 55°C
- 4 x high cfm fans
- Max altitude 15Kft at 575W and 30Kft for sub 575W payloads
- Operating: -40°C to 55°C
- 4 x high cfm fans
- Max altitude 15Kft at 575W and 30Kft for sub 575W payloads
- Designed for insertion into the SAVE (Standardized A-kit
- Envelope), revised with the 2” x 4” top rear keep out are
- Allows space within the envelop for cables and vibration.
- Meets SAVE dimensional requirements: 9.3” (H), 15.9 (W) x 16.1″
- Machined aluminum alloy 6061-T6, bolt together construction
- Approximately 38lbs, no payload boards
- Shock: 30 Gs @ 11ms half sine
- Vibration: 20 to 2000Hz at 5Gs
- Designed to meet MIL-STD-810, MIL-STD-461, and MIL-S-901D
