5 Slot VPX Rugged Test System

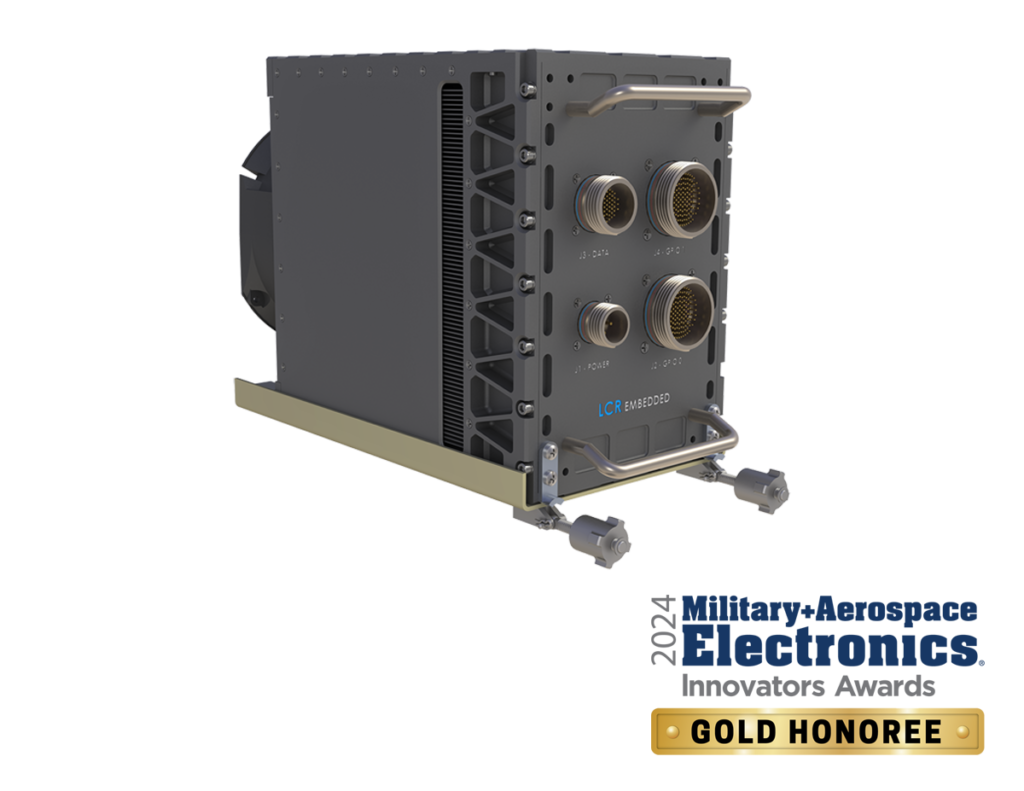

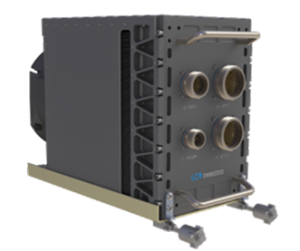

RTS-510 Rugged Chassis

The chassis allows easy access to the backplane and front I/O for backplane customization using Meritec cabling.

Perform platform mount functional system demonstration and verification testing in harsh environment using LCR’s 5 slot rugged chassis for VPX / SOSA aligned payloads – the RTS-510. The rugged design of the RTS-510 enables enhanced performance demonstration and testing at or near application level environmental conditions. The chassis provides a clear transition path from the lab to the deployment chassis.

  • Vehicle mounted testing
  • Rapid I/O panel customization
  • Enables testing in real world application installations
  • A transition platform from the bench top to the onset of deployment.
  • Supports a streamlined testing process leading to the full deployment system

Learn how LCR products can help ensure program success from the development stage through deployment.

Download PDF Datasheet

Download Backplane Brochure

  • Choice of 2 backplane versions for RF or processing centric payloads
  • 5 slot backplanes including 1 x VITA 62 power supply slot

  • Conduction cooled with forced air assist
  • Cooling for aggregate payload power approaching 450W
  • Side walls form enclosed air chambers isolated from the modules
  • Concentrated air flow runs co-planar to heat sink fins

  • Single VITA 62 power supply
  • MIL-STD-704E, MIL-STD-1275 options

  • Dimensions: 10.38” (H), 6.31″ (W), 13.88″ (D) without expansion module and 16.58″ (D) with expansion module.
  • Weight: approximately 23 lbs. excluding payload
  • Application driven custom I/O panels with MIL-STD connectors

  • Designed to meet a variety of MIL-STD-810, MIL-STD-461, MIL-STD-167 and MIL-S-901D method
