Benchtop Development

LCR’s popular DK Series are benchtop platforms for VPX backplane development and system integration testing. The chassis support OpenVPX, CMOSS, and SOSA architectures in accordance with MOSA directives. Versions provide 40Gb and 100Gb high-speed capability and accommodate 3U and 6U VPX module sizes. VPX development platforms support both air-cooled and conduction-cooled modules with quick change card guides.

4 slot 100Gb SOSA Aligned 3U VPX System Development

4 slot 100Gb SOSA Aligned 3U VPX System Development

Designed to address lower slot count system development, the DK3HS-4 is a lighter weight option for smaller system integration efforts. It supports 25Gb per lane data rates for 100Gb performance in new systems being developed for VPX, OpenVPX and SOSA aligned payloads. It enables the early stages of system development with open access and flexible […]
100Gb SOSA Aligned VPX System Development

100Gb SOSA Aligned VPX System Development

High speed VPX systems incorporating PCIe Gen 4 / Gen 5 and 100GBASE-KR4 protocols are here. The DK3HS supports 25Gb per lane data rates for 100Gb performance in new systems being developed for VPX and SOSA aligned payloads. It enables the early stages of system development with open access and flexible configurability resulting in faster time […]
SOSA Aligned 3U VPX Benchtop Development

SOSA Aligned 3U VPX Benchtop Development

The DK3 for 3U VPX features an open frame concept and enhanced flexibility, with fast conversion between air and conduction cooled module guides. Fast backplane replacement makes for easy reconfiguration in support of every stage of development. In support of a variety of test functions, the DK3’s open frame design includes backplane, power supply, fan […]
DK6 Open Frame 6U VPX Development Platform

DK6 Open Frame 6U VPX Development Platform

Open Frame Reduces System Design Time The DK6 for 6U VPX, OpenVPX and SOSA aligned systems features an open frame concept and enhanced flexibility with fast conversion between air and conduction cooled module guides and fast backplane replacement for easy reconfiguration in support of every stage of development. This open frame design includes backplane, power supply, […]

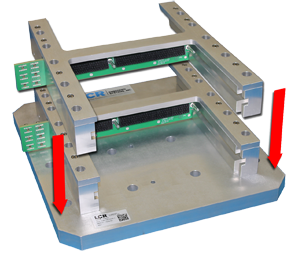

VPX Stackable Test Fixture for Testing, Development, and Validation

VPX Stackable Test Fixture for Testing, Development, and Validation

VPX, VITA 48.2 Conduction Cooled Test Fixture The VITA 48.2-compliant Stackable Single Slot Test Fixture can be used for development, validation, and environmental testing. In the vertical configuration, the fixture can be used on the benchtop or desktop for development and validation. In the horizontal configuration, it can be used for operational/non-operational environmental testing. The OpenVPX […]
