4 slot 100Gb SOSA Aligned 3U VPX System Development

Designed to address lower slot count system development, the DK3HS-4 is a lighter weight option for smaller system integration efforts. It supports 25Gb per lane data rates for 100Gb performance in new systems being developed for VPX, OpenVPX and SOSA aligned payloads. It enables the early stages of system development with open access and flexible configurability resulting in faster time to deployment for critical mission requirements in new and emerging defense programs.

LCR VPX development systems support MOSA (modular open
systems approach) by enabling electronics design based on VPX, OpenVPX, and
SOSA-aligned architectures for defense applications.

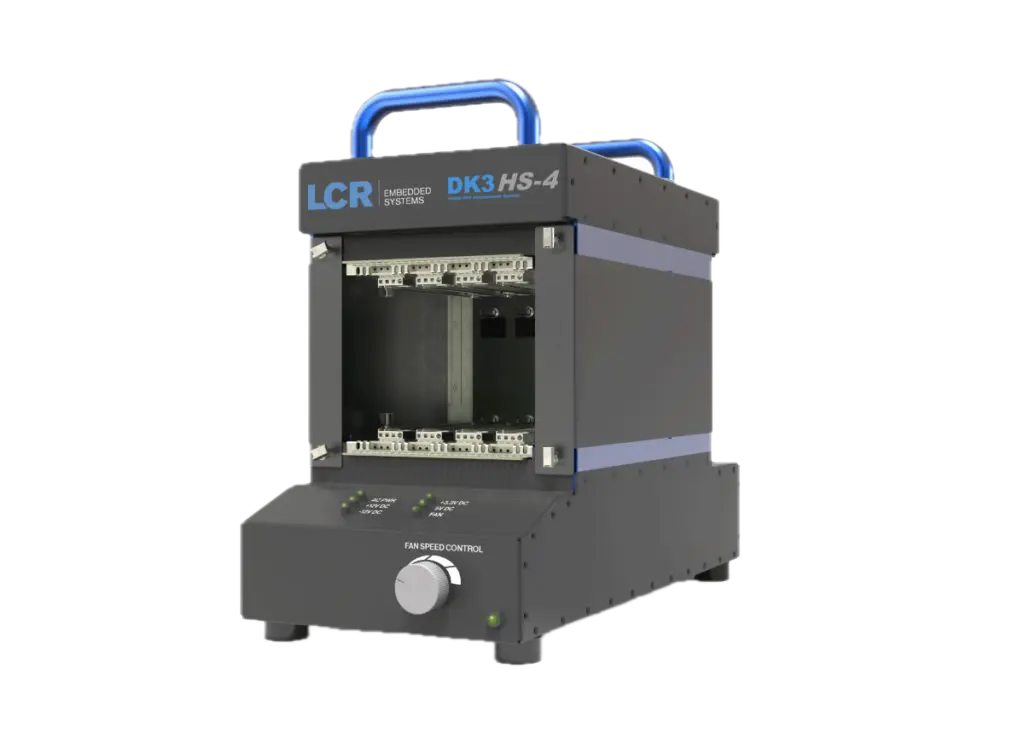

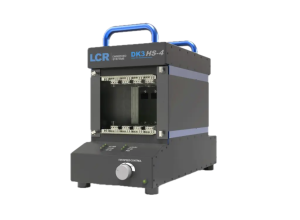

LCR DK3HS4 Development System

DK3HS-4 includes power and ground backplane, power supply, fan cooling and rear transition area. Backplane profiles are created using slot to slot cabling systems.

Learn how LCR products can help ensure program success from the development stage through deployment.

Download PDF DatasheetDownload Backplane Brochure


  • 25Gb per lane data rates for PCIe Gen 4 / Gen 5 and 100GBASE-KR4 protocols
  • Quick-conversion air or conduction cooled slot inserts
  • Open access design with a carrying handle
  • Accepts application targeted or power and ground backplanes
  • Supports up to 4 VPX and SOSA aligned modules
  • Intended for lab use in benign environments



  • Dimensions including feet and handle: 14.58″ (H) x 8.03″ (W) x 17.28″ (D)
  • Weight: Approximately 16lbs



  • Push-pull cooling in front, pull cooling over RTMs
  • Four high cfm fans combine for cooling the front and RTM areas of the chassis
  • Automatic fan speed control with manual fan speed dial
  • Conduction cooled guides feature air passthrough cut-outs
  • Removeable side plates to direct airflow



  • Integrated AC-to-DC 1000W power supply
  • 12V (150W) + 3.4V (85W) + 5.15V (250W) + 12V (450W)



  • 4 slot power and ground 100Gb backplane
  • 2 fully populated slots, 2 x VITA 67 full width slots
  • 2″ slot pitch
  • Custom options
