SOSA Aligned 3U VPX Benchtop Development

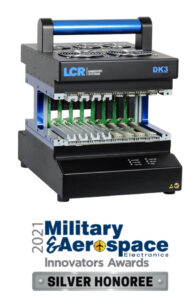

The DK3 for 3U VPX features an open frame concept and enhanced flexibility, with fast conversion between air and conduction cooled module guides. Fast backplane replacement makes for easy reconfiguration in support of every stage of development.

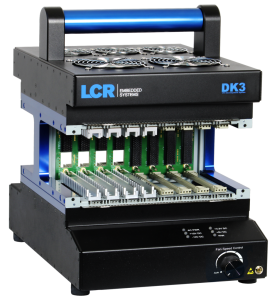

In support of a variety of test functions, the DK3’s open frame design includes backplane, power supply, fan cooling and rear transition. Backplane choices support up to twelve 3U VPX modules, with individual slots that are easily configurable to accept either conduction or air-cooled modules.

LCR VPX development systems support MOSA (modular open systems approach) by enabling electronics design based on VPX, OpenVPX, and SOSA-aligned architectures for defense applications. Supports MOSA (modular open systems approach) directives.

Check out our DK6 for 6U VPX system development needs.

Learn how LCR products can help ensure program success from the development stage through deployment.

The DK3 for 3U VPX features an open frame concept and enhanced flexibility, with fast conversion between air and conduction cooled module guides. Fast backplane replacement makes for easy...

Download PDF Datasheets Download Backplane Brochure

More Product Details

Features

Quick-conversion air or conduction cooled slot inserts

Fast and easy backplane conversion

Open access design with a carrying handle

Accepts application targeted or power and ground backplanes

Supports up to 8 (1.2″ pitch) VPX modules

Intended for lab use in benign environments

Physical

Dimensions including feet and handle: 17.5″ (H) x 12.25″ (W) x 17.25″ (D)

Weight: Approximately 39lbs

Thermal

Push-pull cooling in front, pull cooling over RTMs

5 upper and 2 lower fans

Automatic fan speed control

Conduction cooled guides feature air passthrough cut-outs

Removable side plates to direct airflow

Power Supply

Integrated AC-to-DC 1000W power supply

12 / 5V version standard (12V Cen available)

Output: –1058W; 12V/450W, 5V/375W,3.3V/82.5W, -12V/150W

Backplane

Choose from power and ground or application targeted versions

4 x VITA67.3 aperture for RF and optical I/O
