Dual System SAVE Compliant Chassis

Dual SAVE Compliant Solution for VPX and SOSA Aligned Systems

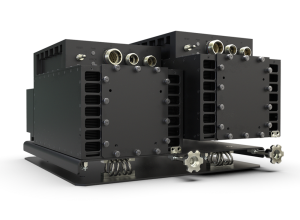

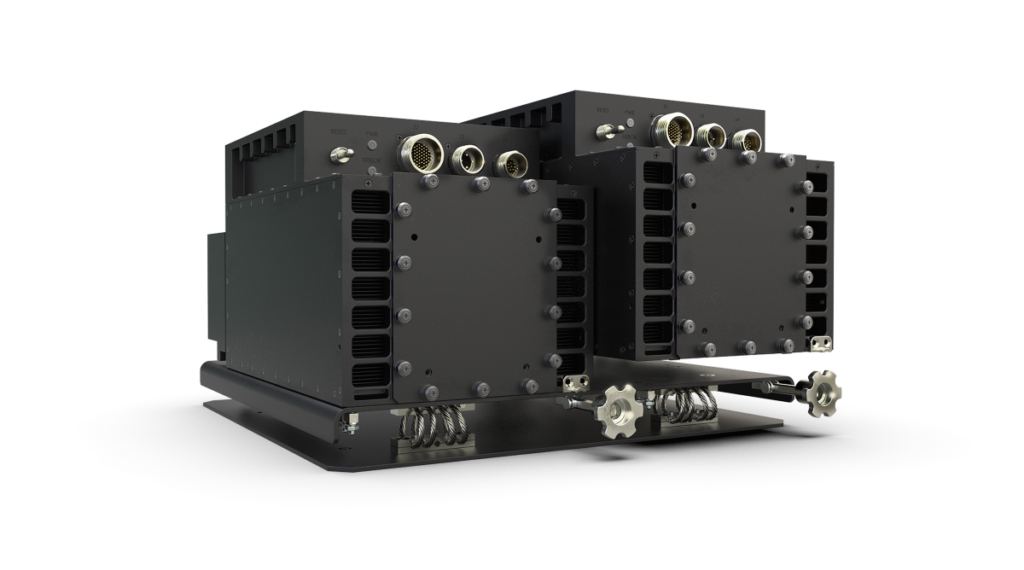

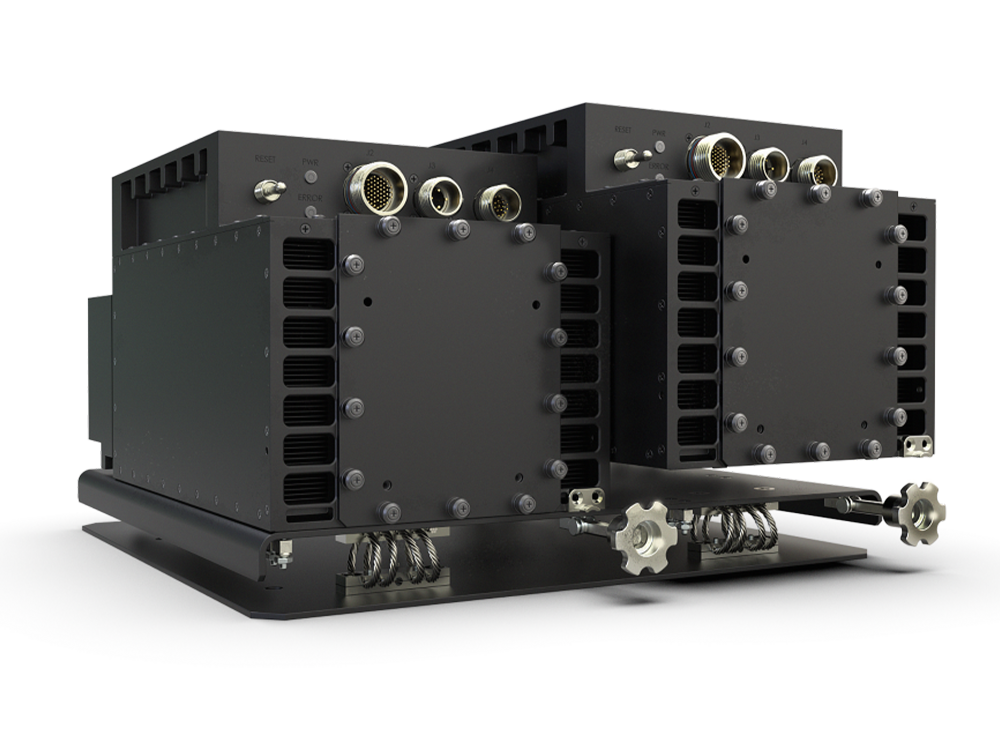

LCR’s VE02 SAVE chassis helps broaden the utility of the SAVE standard. This SAVE compliant chassis enables dual 4 payload slot VPX SOSA aligned systems to reside within the SAVE standard envelope for Army ground vehicular applications. The unique design facilitates complementary operational or redundancy requirements within the SAVE envelope. Individual cooling systems provide added thermal protection for high power dissipating systems in high speed applications.

Learn how LCR products can help ensure program success from the development stage through deployment.

Start your SAVE system development activities with our DK3-SAVE Development Chassis.

Learn more about the SAVE standard for Army ground vehicles.

Dual SAVE Compliant Solution for VPX and SOSA Aligned Systems

LCR’s VE02 SAVE chassis helps broaden the utility of the SAVE standard. This SAVE compliant chassis enables dual 4 payload...

Download PDF Datasheet Download Backplane Brochure

More Product Details

Cooling

  • Each unit is conduction cooled with forced air assist w/ dual 92mm mil-rated fans
  • Cooling for aggregate payload power approaching 400W
  • Side walls form enclosed air chambers isolated from the modules

Power

  • Up to 750W VITA 62 pluggable power supply in each of 2 chassis mounted within the SAVE envelope.
  • MIL-STD-704E, MIL-STD-1275

Physical

  • 7.63” (W) x 7.88” (H) x 16” (D) incl. handles and connectors
  • Mounting: SINCGARS Radio Adapter
  • Weight: Approximately 25lbs, no payload, no PSU
  • Application driven custom I/O panels with MIL-STD connectors
  • VITA 48.2 conductive cooling with air assist

Environment

  • Designed to meet a variety of MIL-STD-810, MIL-STD-461, MIL-STD-167 and MIL-S-901D methods

Backplane

  • Custom topologies supporting VPX and SOSA aligned payload module profiles
  • Support for 1000BASE-BX, 1000BASE-KX, 10GBASE-KX4, 10GBASE-KR, or 40GBASE-KR4
  • Up to 4 payload plus 1 PSU slot in each half SAVE unit.
  • VITA 66 and 67 Optical and RF support
