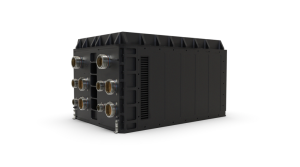

18 Slot Rugged Test and Deploy System

Perform platform mounted functional test and verification for VPX, OpenVPX and SOSA aligned payloads in harsh environments using LCR’s RXS chassis line. Part of LCR’s RXS products, the AR02 chassis support initial power-and-ground backplanes (P&G) with Meritec® cable interconnections for rugged testing (RTS) and later, routed backplanes and custom I/O for transition to rugged deployment (RDS). RXS chassis are designed to serve as the basis for rugged test and demonstration activities while enabling near seamless transition to the deployed chassis. Supporting MOSA (modular open systems approach) directives.

Perform platform mounted functional test and verification for VPX, OpenVPX and SOSA aligned payloads in harsh environments using LCR’s RXS chassis line. Part of LCR’s RXS products, the AR02...

Download PDF Datasheets Download Backplane Brochure

More Product Details

Description

The RXS family leverages a baseline modular concept for scalability from 1 to 18 slots with customized backplane, and input and output (I/O) panels that meet or exceed MIL-STANDARD specifications.

  • Vehicle mounted testing
  • Rapid I/O panel customization
  • Enables testing in real world application installations
  • A transition platform from the bench top to the onset of deployment.
  • Supports a streamlined testing process leading to the full deployment system

Learn how LCR products can help ensure program success from the development stage through deployment.

Cooling

  • Cooling for over 1000W TDP at max altitude 15Kft and 500W at 30Kft max altitude
  • Side walls form enclosed air chambers isolated from the modules
  • Concentrated air flow runs co-planar to heat sink fins

Power

  • Four VITA 62 power supplies
  • Max 2800W
  • MIL-STD-704E, MIL-STD-1275 options

Physical

  • Dimensions: 9 to 10.5” (H), 11.84″ (W) x 17”, 19.5” (D) incl. handles, connectors and fans
  • Weight: Approx. 35-40 lbs. payload excluded
  • Application driven custom I/O panels with MIL-STD connectors

Environmental

  • Designed to meet a variety of MIL-STD-810, MIL-STD-461, MIL-STD-167 and MIL-S-901D method

Backplane

  • Flexible backplane build capability enables AR02 backplane configurations that accommodate VPX and SOSA aligned PIC profiles
  • Dual 8 slot backplanes each with 2 x VITA 62 power supply slots
