SOSA Aligned Chassis Management

Chassis Management

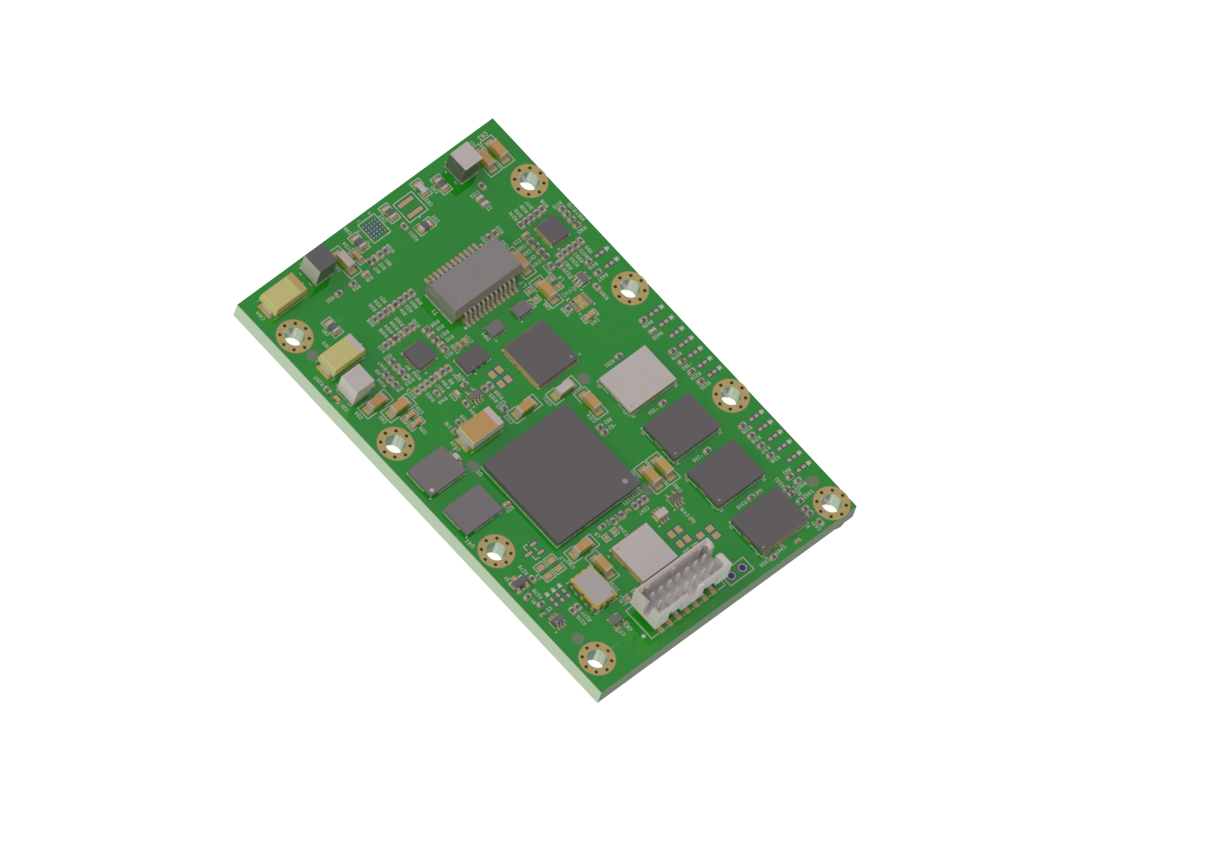

LCR’s Chassis Manager is a VITA 46.11-compliant solution designed for embedded system chassis with VPX and SOSA-aligned board payloads. It monitors chassis health, including voltage, temperature, and fan parameters, using six predefined thresholds per metric, and initiates corrective actions when anomalies occur. On-the-fly code upgrades simplify configuration updates, while system management is supported via IPMItool CLI and an intuitive GUI for setup and maintenance.

Designed for both rugged deployments and development environments, it offers flexible mounting options, including 3U VPX carrier modules or custom boards for internal or backplane integration.

Learn how LCR products can help ensure program success from the development stage through deployment.

Designed for both rugged deployments and development environments, it offers flexible mounting options, including 3U VPX carrier modules or custom boards for internal or backplane integration.

Learn how LCR products can help ensure program success from the development stage through deployment.

Download Chassis Brochure Download Backplane Brochure

More Product Details

Features

Deployment and development system configurations
Supports in field on the fly code upgrades using open-source s/w
Meets VITA 46.11 requirements
16 total I/O, 8 inputs/8 outputs
Supports up to 32 temperature sensors on I2C
Network Graphical User Interface
Monitors up to 12 fans
I2C for connecting displays and environmental sensor
Xilinx FPGA based design supporting IPMI

Power

Low 4W total power requirements. Primary power from +3.3V_Aux) rail of the power supply

Physical

3.61” long (91.8 mm) x 2.31” wide (58.8 mm)
