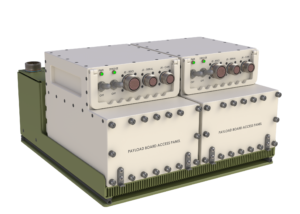

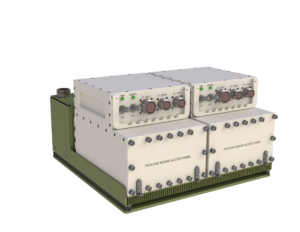

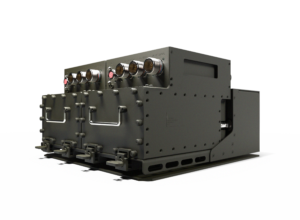

Liquid Cooled Save Compliant Chassis

Cooling (per chassis)

• Self-contained, closed loop liquid cooling
• 2 high cfm cooling system fans
• Per slot cooling of up to 140W
• Operating: -40°C to 55°C
• Max power at altitude: 650 – 700W at 15Kft and sub 500W at 30Kft

Power (per chassis)

• 1 VITA 62 MIL-STD-1275 pluggable power supply per chassis
• Input voltage: 18 to 36 VDC
• Output: up to 750W total

Physical

• Individual VE03 chassis: 7.63” (W) x 7.88” (H) x 11” (D) incl. handles and connectors
• Approximate weight 15lbs for each mounted chassis, no payload boards
• Combined dual chassis, shock tray and closed loop cooling system meets SAVE dimensional requirements: 9.3” (H), 15.9 (W) x 16.1” (D)
• Includes the 2” x 4” top rear keep out area.
• Machined aluminum alloy 6061-T6, bolt together construction

Environment

• Designed to meet a variety of MIL-STD-810, MIL-STD-461, MIL-STD-167 and MIL-S-901D methods

Backplane (per chassis)

• Custom topologies supporting VPX and SOSA aligned payload module profiles
• Support for 1000BASE-BX, 1000BASE-KX, 10GBASE-KX4, 10GBASE-KR, or 40GBASE-KR4
• Up to 5 payload plus 1 PSU slot in each half SAVE unit.
• VITA 66 and 67 Optical and RF support
