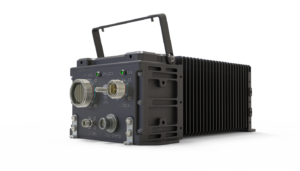

Dual Slot Rugged Chassis for VPX Systems

Physical

• Passive cooling – no fan module: 4.9” (H), 6.2” (W) x 11.5”(D), weight: 8lbs
• Active cooling – with fan module: 4.9” (H), 6.2” (W) x 15”(D), weight: 10.5lbs
• Machined aluminum alloy 6061-T6, bolt together construction

Environmental

• Shock: 30 Gs @ 11ms half sine
• Vibration: 20 to 2000Hz at 5Gs
• Designed to meet MIL-STD-810, MIL-STD-461, MIL-STD-1275E and 901D

Thermal

• Estimated aggregate payload cooling: 100W passive cooling and 200W active cooling
• Operating: -40°C to 55°C
• Contact LCR regarding max power at altitudes above 15Kft

Power Supply

• 1 VITA 62 MIL-STD-1275 pluggable power supply
• Input voltage: 18 to 36 VDC

Backplane

• 2 payload plus 1 power supply slot, VPX and SOSA aligned slot profiles, high speed 40Gb and 100Gb capability plus VITA 67 apertures for optical and RF I/O, custom and power and ground

I/O Capabilities

• Custom I/O panel supporting high speed connectivity including high density MIL-STD 38999 circular connectors and high speed 10GbE 38999 Hercules connectors.

Applications

• SWaP sensitive. High high speed C5ISR systems operating in mission critical defense applications operating in demanding environments.

Payload Compatibility

• 3U VPX and SOSA multi-core single board computers, high speed GPGPU and FPGA modules, and Ethernet switching.
