Custom Rigid Flex Rigid Interconnects

flexible-banner
Rigid-Flex-Backplane-1-clear
Rigid-Flex-Backplane-1-clear

Custom Rigid Flex Rigid Interconnects

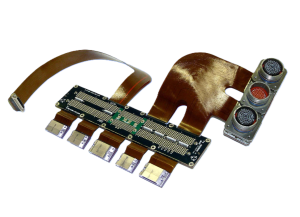

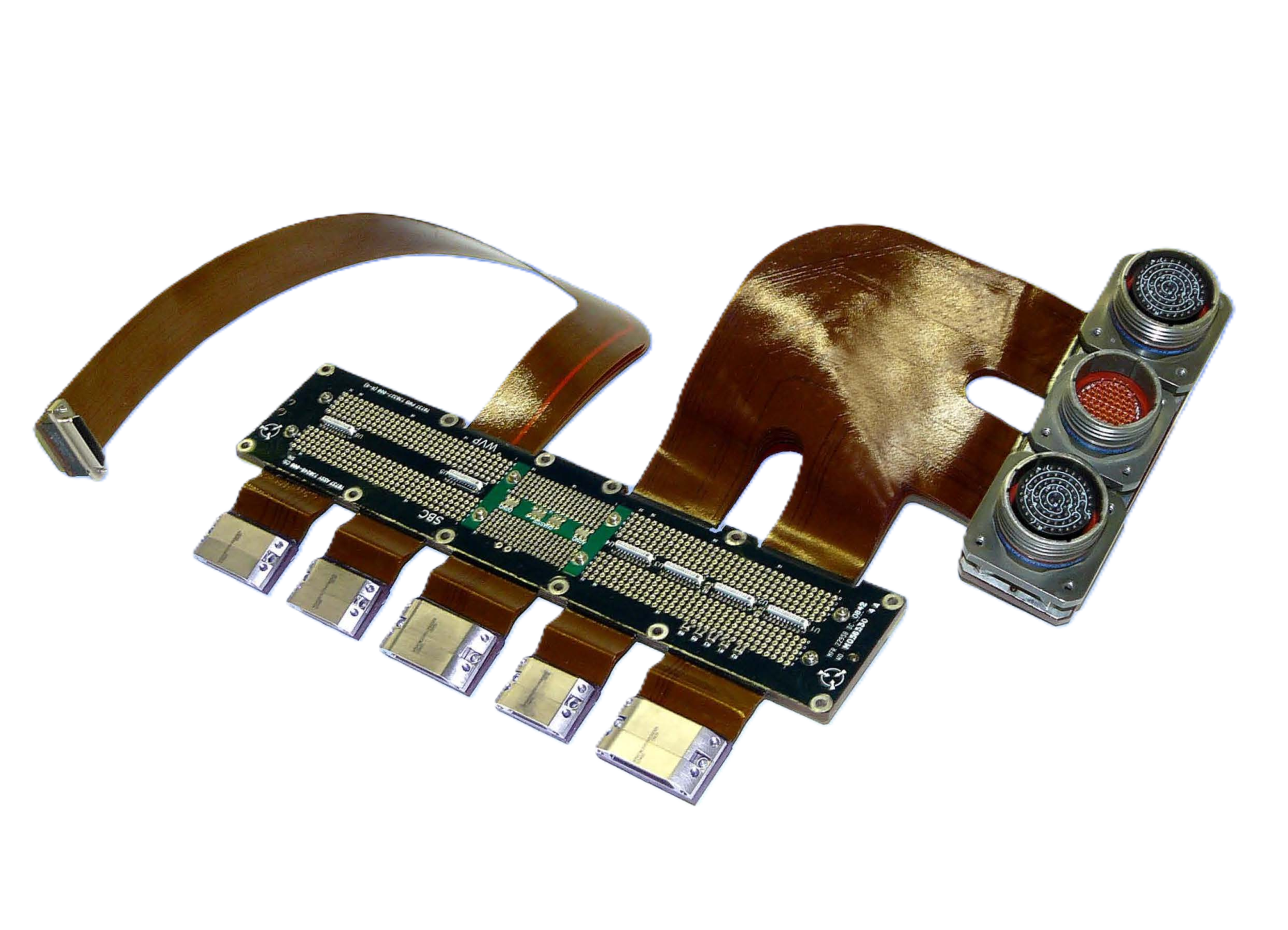

Rigid–flex–rigid interconnect assemblies combine flexible circuitry with rigid board sections to enable reliable, space-saving connections in complex electronic systems. Ideal for defense and industrial applications, they offer durability, vibration resistance, and design flexibility in tight or high-stress environments. For over 35 years, LCR Embedded Systems has provided custom rigid–flex–rigid assemblies, delivering proven performance and integration expertise for rugged, mission-critical applications where reliability and longevity are essential.

Rigid–flex–rigid interconnect assemblies combine flexible circuitry with rigid board sections to enable reliable, space-saving connections in complex electronic systems. Ideal for defense and...

Ask About VME Backplanes

More Product Details

General Features

  • Standard and custom sizes
  • Outer ground layers for EMI/RFI shielding
  • Heavy plated contacts for longer life and robustness
  • With or without P0 connector, J2 and J3 rear shrouds
  • Power studs or 10-pin power bugs
  • On-board, In-board and Off-board passive terminations
  • IACK and bus grant jumpers or auto-switching connectors
  • High-performance, Low noise
  • Operating Temperature: -40° C to +85° C
  • Storage Temperature: -55° C to +85° C

Standard

  • Standard Slot Configurations 1 thru 21
  • J1/J2/J3 Monolithic available, 3U/6U/9U

Custom

  • Analog/Digital, mixed bus and custom bus
  • All slot configurations
  • Up to 32 layers
  • Multiple layer controlled impedance design
LCR-AIR-Banner-F35

Contact Us Today

Our headquarters, engineering center, customer support center and manufacturing facility is located in Audubon, PA. just minutes from Center City Philadelphia. Our design facility in Ridgeland, MS. provides additional engineering resources in board design and system integration.
