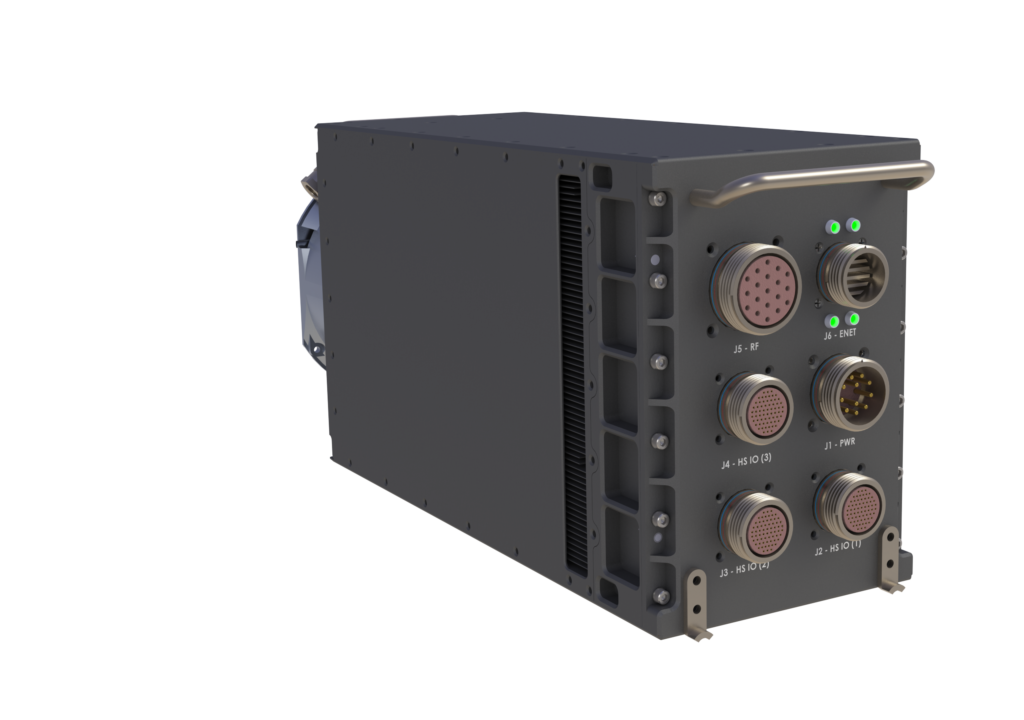

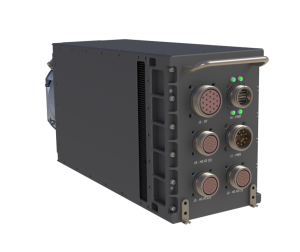

8 Slot VPX Rugged Test System
Perform platform mount functional system demonstration and verification testing in harsh environment using LCR’s 8 slot rugged chassis for VPX / SOSA aligned payloads – the RTS-820. The rugged design of the RTS-820 enables enhanced performance demonstration and testing at or near application level environmental conditions. The chassis provides a clear transition path from the lab to the deployment chassis.
- Vehicle mounted testing
- Rapid I/O panel customization
- Enables testing in real world application installations
- A transition platform from the bench top to the onset of deployment.
- Supports a streamlined testing process leading to the full deployment system
Learn how LCR products can help ensure program success from the development stage through deployment.
Download PDF DatasheetDownload Backplane Brochure
- Flexible backplane build capability enables RTS-820 backplane configurations that accommodate all SOSA aligned PIC profiles
- 10 slot backplane including 2 x VITA 62 power supply slots
- Conduction cooled with forced air assist
- 850W at max altitude 15Kft and 500W at 30Kft max altitude
- Side walls form enclosed air chambers isolated from the modules
- Concentrated air flow runs co-planar to heat sink fins
- Dual VITA 62 power supplies
- Max 1400W
- MIL-STD-704E, MIL-STD-1275 options
- Dimensions: 9 to 10.5” (H), 6.3125″ (W) x 17.625″ (D) incl. handles, connectors and fans
- Weight: approximately 30 lbs. excluding payload
- Application driven custom I/O panels with MIL-STD connectors
- Designed to meet a variety of MIL-STD-810, MIL-STD-461, MIL-STD-167 and MIL-S-901D method
