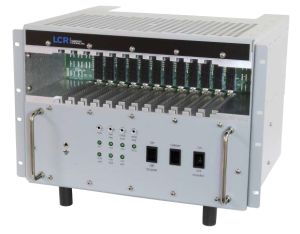

SOSA Aligned 3U VPX Development Chassis

VPX system integration is complex and requires a versatile development platform. LCR’s 19” 3U VPX Development Chassis for small to large scale projects is a rackmount or desktop solution for OpenVPX and SOSA aligned payloads. The 12 slot power and ground backplane supports VITA 48.2 conduction cooled modules and VITA 67.3 slot apertures for a variety of RF and optical I/O connectors targeting a range of applications. Up to 1400 watts of power supply output ensures sufficient power for demanding HPEC payloads. Supports MOSA (modular open systems approach) directives.

LCR VPX development systems support MOSA (modular open systems approach) by enabling electronics design based on VPX, OpenVPX, and SOSA-aligned architectures for defense applications.

Learn how LCR products can help ensure program success from the development stage through deployment.

VPX system integration is complex and requires a versatile development platform. LCR’s 19” 3U VPX Development Chassis for small to large scale projects is a rackmount or desktop solution for...

LCR VPX development systems support MOSA (modular open systems approach) by enabling electronics design based on VPX, OpenVPX, and SOSA-aligned architectures for defense applications.

Learn how LCR products can help ensure program success from the development stage through deployment.

Download PDF Datasheets Download Backplane Brochure

More Product Details

Backplane

12 slot Pass-thru with VPX power/ground/utility connections in J0 & J1.
Includes 8X apertures for VITA 67.3c connectors
Cutout size per VITA 65.0 Aperture H
VITA 67.3c connectors not provided unless specified

Cooling

Air cooled with 820 CFM fan bank
75W per slot cooling or 900W total
Fan speed control based on exhaust temp sensors
Fan LED Alarm to monitor fan tach

Power

110VAC Power inlet/filter IEC 320-C14
Dual 1200W power supplies
+12VDC / 100Amps, +5V / 35Amps, +3.3V / 36Amps
Up to 2400 watts of total power
Circuit breakers (2)

Physical

Rackmount for 19” EIA frame
Removable mounting ears
Dimensions: 12.25” / 7U (H), 19″ (W) x 17.64″ (D) incl. handles and connectors
Bench Top Mounting
Removable mounting feet adding 1.75″
12 conduction cooled card slots for VITA 48.2 VPX modules
12 RTM slots
