16 Slot 3U VPX 19” Rackmount Chassis

flexible-banner

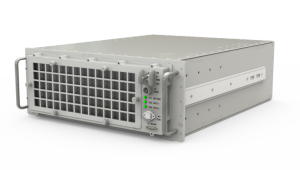

LCR-19-RackMount-Top-Hero.1324-1-768x434-2

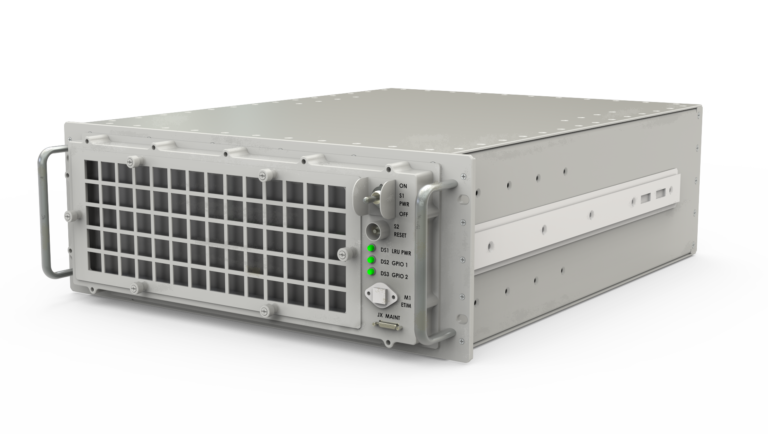

LCR-19-RackMount-Top-Hero.1324-1-768x434-2

16 Slot 3U VPX 19” Rackmount Chassis

The RM Series is a feature rich 19″ rackmount chassis for 3U VPX and SOSA aligned payloads. Ideal for performance in demanding environments across a range of applications. The chassis is available with up to 16 slots and supports new and emerging high speed VITA 48.2 modules with 40Gb / 100Gb backplanes options. This chassis includes high CFM fans for exceptional cooling. The 4U to 6U (slot count dependent) low profile chassis has a hinged front panel that enables easy payload access and provides EMI protection.

Learn how LCR products can help ensure program success from the development stage through deployment.

The RM Series is a feature rich 19″ rackmount chassis for 3U VPX and SOSA aligned payloads. Ideal for performance in demanding environments across a range of applications. The chassis is...

Download PDF Datasheets Download Backplane Brochure

More Product Details

Backplane

  • Up to 16 slot custom backplanes for any application.
  • 40Gb and 100Gb data rates
  • Supporting VPX and SOSA architectures
  • Optional VITA 66 / 67 connectors as needed

Cooling

  • VITA 48.2 conduction cooled with air assist with dual high CFM fan bank
  • Fan speed control based on exhaust temp sensors
  • Fan LED Alarm to monitor fan tach

Power

  • Input options: 115VAC 60/400Hz,28VDC, or 270VDC
  • Output power up to 1600W

Physical

  • Rackmount for 19” EIA frame
  • 6.96” (4U) to optional 6U (H), 19” (W) x 22” (D) excl. handles and connectors 177mm x 482.6mm x 559mm. Plus 1.75” (44.5mm) for the handles
  • 16 conduction cooled card slots for VITA 48.2 VPX modules
  • EMI gasketed filter with hinged door and removable dust filter
  • Customizable rear I/O panel for SMA, DB, RJ45 and 38999 connectors

Media Conversion

  • Available with dual port 10GBase-T ports to 10GKR and 1GBase-T ports to 1GKX converter

Chassis Management

  • Available with VITA 46.11 compliant chassis management
