New and emerging defense programs are driving demand for high speed VPX and SOSA aligned backplanes and LCR is at the forefront with over 45 new designs. Leveraging our proud 20-year history of providing VME, cPCI, cPCI Serial and ATCA backplanes, our engineering staff combines experience with cutting edge technology to create custom VPX backplanes supporting 40Gbps data rates and RF and Optical I/O.
High Speed Backplane Brochure – Capabilities for Today and Tomorrow

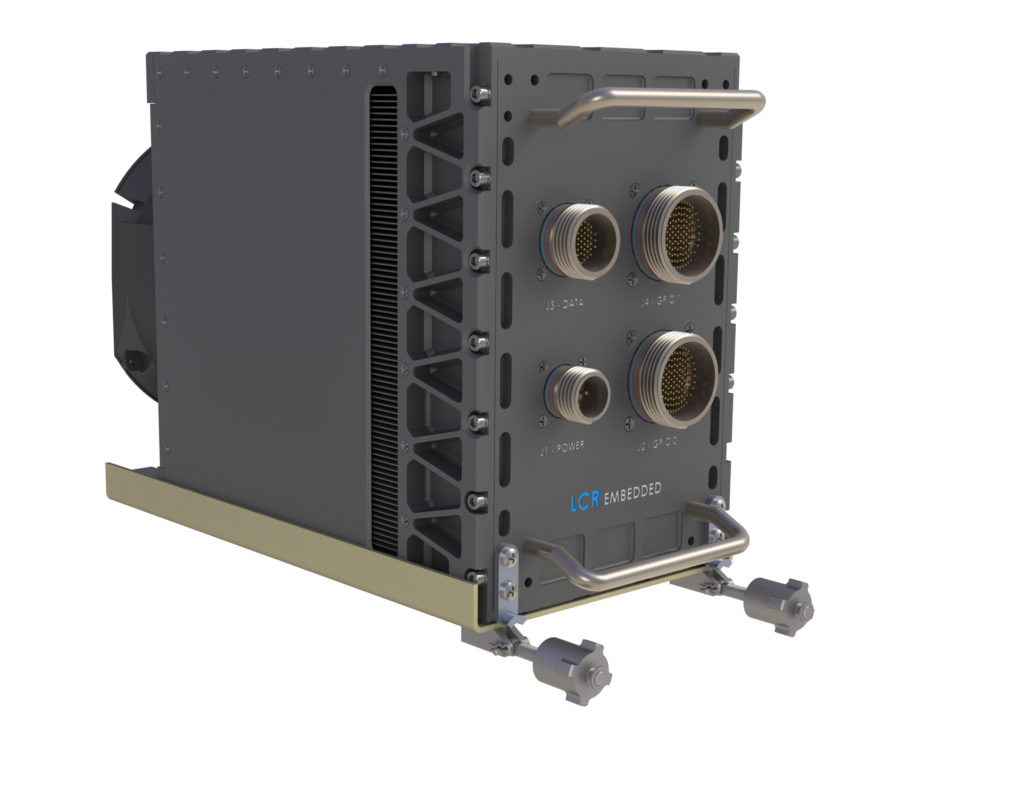

5 Slot VPX Rugged Test System

When benchtop testing and integration activities are complete, it’s time to take it to the next level. The rugged design of the RTS-510 for VPX and SOSA payloads enables enhanced performance demonstration and testing at or near application level environmental conditions.

3U VPX Backplanes

3U VPX, SOSA-aligned slot profiles, 40Gbps, VITA 66 and 67 optical and RF support. Power and ground development versions.

6U VPX Backplanes

6U VPX, SOSA-aligned slot profiles, 40Gbps, VITA 66 and 67 optical and RF support. Power and ground development versions.

CompactPCI Backplanes

The CompactPCI standard was created to address a large range of applications, including aerospace and defense as well as communications and industrial. The standard supports both 3U and 6U cards and allows for both convection (air) and conduction cooling. Since its release in 1995, it has also

VME Backplanes

VME enjoys a strong, stable ecosystem, particularly in many of the areas involving x86 compute blades, I/O, digital signal processing, and areas requiring custom design. It also enjoys some cost-effectiveness due to its wide adoption in over 400 defense programs as well as in industrial automation. Its

Flex and Rigid/Flex Assemblies

LCR Embedded Systems offers an array of flex and rigid/flex assembly interconnect options designed for rugged military environments. We’re able to provide these high-quality products thanks to our years of experience in solid design and applications expertise on new and existing programs.

AdvancedTCA Backplanes

AdvancedTCA is an excellent technology for deployments requiring high-speed, high-performance computing and offers the added cost advantages that come with using a commercially popular and widely used telecommunications form factor. We design our AdvancedTCA backplanes to function as part of a comprehensive, rugged enclosure ecosystem, with extended

Wire Wrap Backplanes

The product or service is approaching end of life. Click here for information regarding last time buy and shipment dates. LCR Embedded offers a full suite of future-facing design, engineering, and manufacturing capabilities to our customers. Nevertheless, we remain committed to supporting our customers’ legacy systems as

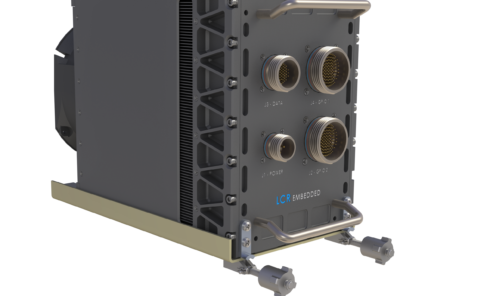

RTS-510
LCR 6U VPX backplane
LCR Embedded 3U VPX Backplane

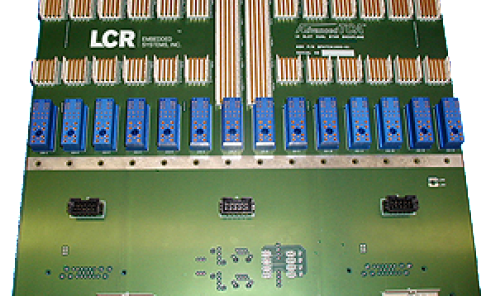

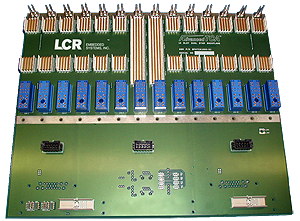

AdvancedTCA Backplanes

AdvancedTCA Backplanes


Compliant with PICMG 3.0, mesh/star/dual star fabric, bussed or radial IPMI, rugged options, and more

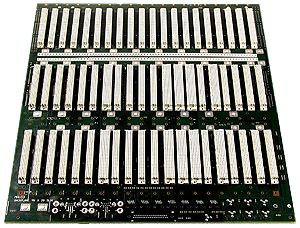

VME Backplanes

VME Backplanes


Compliant with VITA standards, rugged contacts for longer life, ground planes included, power connection options, and more
Wire Wrap Backplanes

Wire Wrap Backplanes


Our state-of-the-art wire wrap support can maintain this technology's position as an affordable solution for our customers

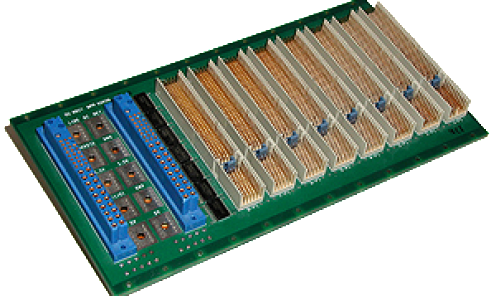

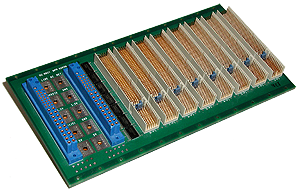

CompactPCI Backplanes

CompactPCI Backplanes


Created to address a large range of applications, including aerospace and defense as well as communications and industrial

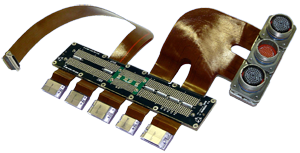

Flex and Rigid/Flex Assemblies

Flex and Rigid/Flex Assemblies


We offer an array of flex and rigid/flex assembly interconnect options designed for rugged military environments
