A New Family of Affordable Universal Enclosures

2U, 3U, or 4U VME, CompactPCI, or Custom Enclosures

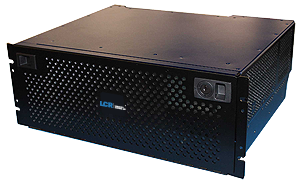

4U Universal Development Enclosures (shown with front cover on)

4U Universal Development Enclosures (shown with front cover on)

LCR Embedded Systems’ new family of customizable, rugged industrial NEBS enclosures provide our telecom, datacom, and military customers with an affordable open-standard ecosystem for application solutions development.

Processor options include Intel Core i5/i7 Quad-Core Processors, drive bays for a slim DVD, and two locking, removable 2.5″ SATA drives.

  • Slots:PICMG 2.16-compliant 6U horizontally mounted, 64-bit/33MHz PCI
    • 2U: 3 slots, (1 System/2 Peripheral) or (1 System/2 Peripheral/1 Switch w/out I/O tray)
    • 3U: 4 slots, (1 System, 1 Switch, 2 Peripheral)
    • 4U: 8 slots, (1 System, 1 Switch, 6 Peripheral)
  • RTMs:
    • 2U: (3) RTM board support
    • 3U: (4) RTM board support
    • 4U: (8) RTM board support
  • Other configurations available
  • CompactPCI/VME

  • Method: Left-to-right, push configuration
  • Washable filter for 80% dust arrestance
  • Fans:
    • 2U/3U: (3) 4500rpm, 67 CFM, 0.4 in H2O fans
    • 4U: (6) 4500rpm, 67 CFM, 0.4 in H2O fans
  • 66 dBA full speed noise
  • Fan tray accessible and easily removed for service

  • Rear breaker control/protection
  • Switches: Front-accessible power switch on fan tray
  • Indicators: Input Power Good/Output Power Fault LED
  • Displays: Run time indicator for schedule maintenance
  • Front cover:
    • 2U: Locking removable front door
    • 3U/4U: Locking hinged front door

  • Supplies: (2) 300W power supplies (CompactPCI), (single 600W or dual redundant 300W)
  • Board support:
    • 2U: Supports up to (3) 75W SBCs/Switch in 600W mode
    • 3U: Supports up to (4) 75W SBCs/Switch in 600W mode
    • 4U: Supports up to (7) 75W SBCs/Switch in 600W mode
      • Ships with universal AC supplies standard
      • 48V option on request

  • HWD:
    • 2U: 2U x 19″ x 15″
    • 3U: 3U x 19″ x 15″
    • 4U: 4U x 19″ x 15″
  • Weight: less than 30 lb
  • Materials: Aluminum frame
  • Finish: Black powder coat, semi-gloss
  • Mounting:
    • 2U: Removable mounting flanges for rackmount applications, removable door w/smoked window
    • 3U/4U: Removable mounting flanges for rackmount applications, hinged door w/smoked window

  • Temperature: 0C to 55C (op), -40C to 70C (st)
  • Humidity: 5-95% (op), 0-95% (st)
  • Altitude: 4500m (op), hard-drive dependent (st)
  • Shock: 20 Gs @ 11ms (op), 20Gs @ 6ms (st), half-sine
  • Vibration:
    • 0.5 G/Hz @ 5-100Hz sine sweep
    • Random: 0.04 G2/Hz @ 20-2000Hz (op)
    • Random: 5-20 Hz @ 0.0132 G2/Hz, 20-200 with -3dB slope (st)
  • EMI/EMC: Designed to meet FCC 47 CFR Part 15 Class A, N55022 Class A, EN55024
